LED Fabric Lightboxes - Wall Mounted

Our range of fabric LED lightboxes are ideal for creating an eye-catching centrepiece at any event, or for use as a backdrop to your exhibition stand.

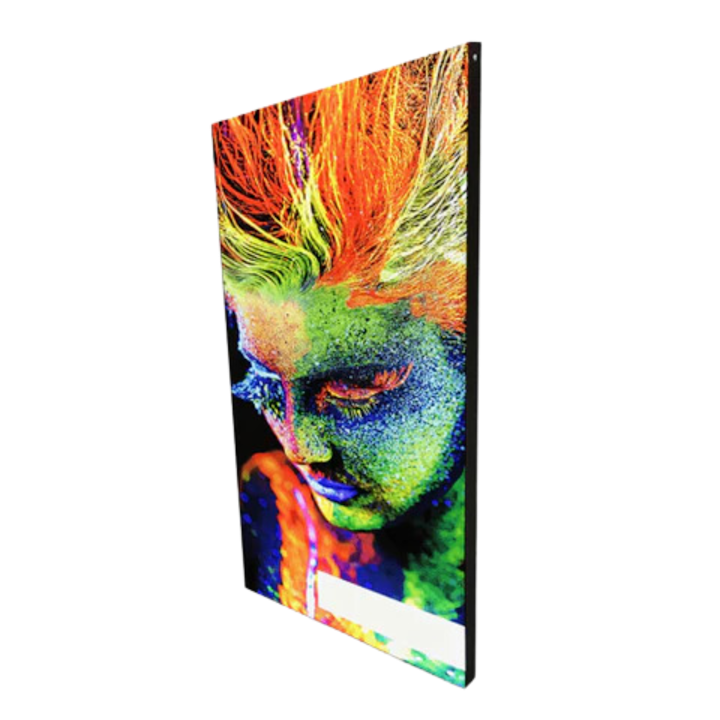

The LED light box is a vibrant display, with its smooth exterior and UV printed graphics, which when combined with LED lighting, creates a truly fascinating display that demands instant gratification.

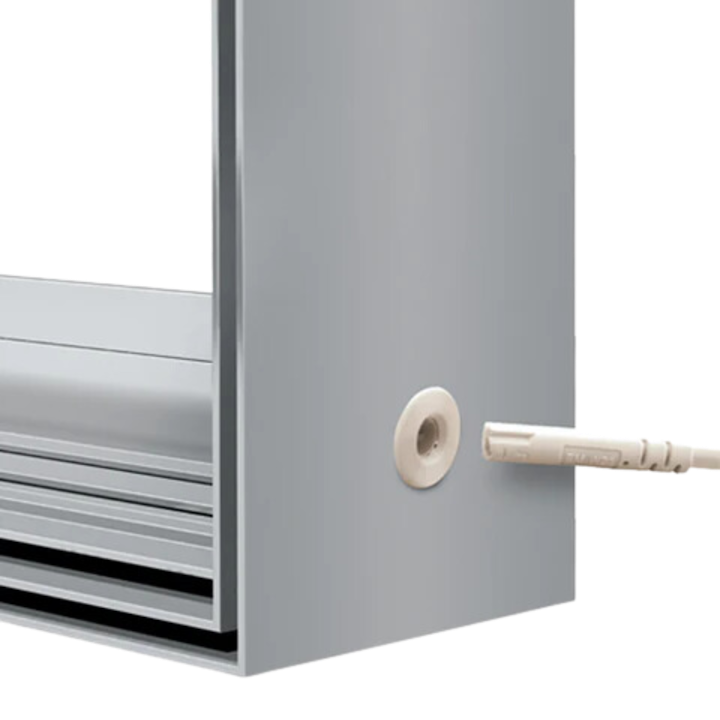

This slim wall mounted system has a narrow 75mm anodized aluminium frame profile and a flat recess at the rear for easy wall fixing. It is also possible to link light boxes together for an even larger scale display.

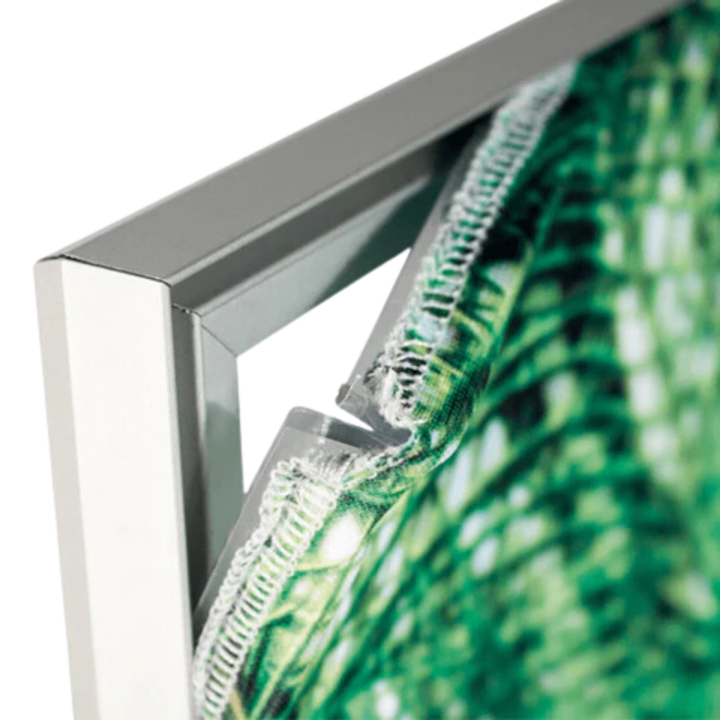

The fabric graphics come complete with silicone edged gaskets (SEGs) which simply push into the channelling on each side of the frame to pull the graphic tightly into place. What's more, these graphics can be changed as and when you wish, meaning you will save on your hardware costs in the long run.

Edge lit LED lighting strips are attached to the inside of the framework, along the top and bottom edges, which not only conceals the transformer and mains cables but also ensures the lighting output is consistent and vibrant, without any visible shadowing.

Assembly is remarkably simple, and only requires the Allen keys provided.

Available in sizes:

• 2m (h) x 1m (w) - 2000mm x 1000mm
• 2m (h) x 2m (w) - 2000mm x 2000mm
• 2m (h) x 3m (w) - 2000mm x 3000mm

Technical Information:

Each LED strip is 360mm long, and has 5 LED lenses totalling 13 watt, these led strips are connected to each frame using diamond toggles and screws. You can run a maximum of 5 strips from one transformer/driver.

Driver/Transformer - DC 24 Volt output, AC110/240V input and is also secured to the profile using diamond toggles and screws. Multiple drivers can be daisy chained together to ensure only one mains cable is required.

Each lightbox comes with a 3m power cable and UK plug.

Please note: This is a bespoke made-to-order item.
